XAG V50 Agricultural Drone

XAG

Agricultural Drone

Small Size Levers Big Impact

Introducing the V50 Agricultural Drone, with an advanced, foldable twin-rotor structure and quick-swap design. A lightweight, durable drone, equipped with an easy-to-use handheld controller. The V50 is ready to take on any task, whether flying solo or as part of a team. It’s available now as an economical solution that offers unbeatable value.

12 L/min

Max. Flow Rate

110 kg/min

Max. Spread Rate¹

13 hectares

Single Mapping
Operation Area

2 control methods

Fully Autonomous &
Manual Control

One person, one drone. That’s all it takes.

From crop protection to fertilizing, every task is an
absolute breeze.

Foldable twin-rotor structure makes it compact and easy to store.

Quick-swap design allows you to freely switch between RevoSpray and RevoCast systems.

The quick-swap design, with dual safety locks and triple-proof plugs,
enables quick and easy system interchange with just a snap and lock.

Powerful performance achieves an effortless 20 kg payload.
Fast and stable.

IPX6K protection rating ensures durability even in harsh field environments. The drone can be easily washed after use,
helping to reduce corrosion risks and extend its lifespan.

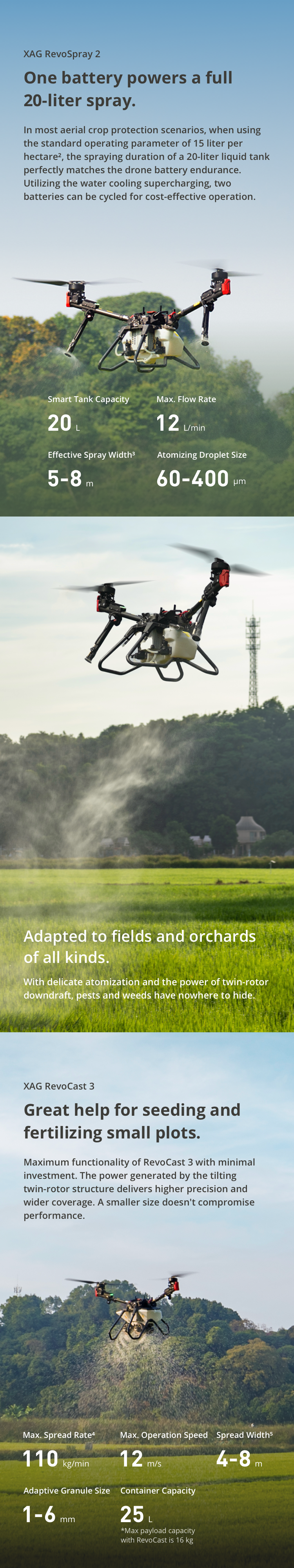

XAG RevoSpray 2

One battery
powers a full
20-liter spray.

In most aerial crop protection scenarios, when using the standard operating parameter of 15 liter per hectare², the spraying duration of a 20-liter liquid tank perfectly matches the drone battery endurance. Utilizing the water cooling supercharging, two batteries can be cycled for cost-effective operation.

Smart Tank Capacity

20 L
Max. Flow Rate

12 L/min
Effective Spray Width³

5-8 m
Atomizing Droplet Size

60-400 um

Adapted to fields and orchards
of all kinds.

With delicate atomization and the power of twin-rotor
downdraft, pests and weeds have nowhere to hide.

XAG RevoCast 3

Great help for seeding and
fertilizing small plots.

Maximum functionality of RevoCast 3 with minimal investment.
The power generated by the tilting twin-rotor structure delivers higher precision
and wider coverage. A smaller size doesn't compromise performance.

Max. Spread Rate⁴

110 kg/min
Max. Operation Speed

12 m/s
Spread Width⁵

4-8 m
Adaptive Granule Size

1-6 mm
Container Capacity

25 L

*Max payload capacity
with RevoCast is 16 kg

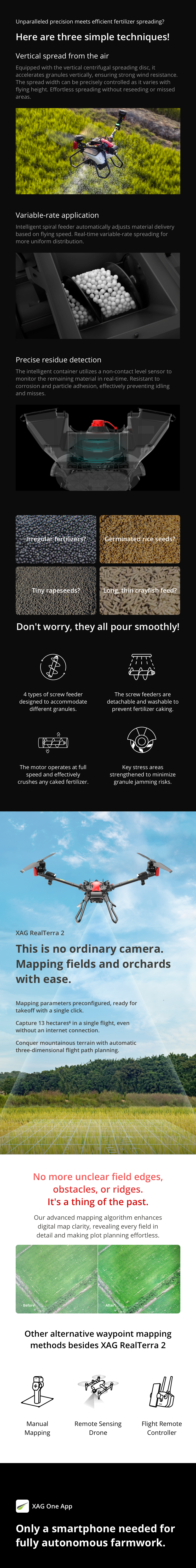

Unparalleled precision meets efficient fertilizer spreading?

Here are three simple techniques!

Vertical spread from the air

Equipped with the vertical centrifugal spreading disc, it accelerates granules vertically, ensuring strong wind resistance. The spread width can be precisely controlled as it varies with flying height. Effortless spreading without reseeding or missed areas.

Variable-rate application

Intelligent spiral feeder automatically adjusts material delivery based on flying speed. Real-time variable-rate spreading for more uniform distribution.

Precise residue detection

The intelligent container utilizes a non-contact level sensor to monitor the remaining material in real-time. Resistant to corrosion and particle adhesion, effectively preventing idling and misses.

Irregular fertilizers?

Germinated rice seeds?

Tiny rapeseeds?

Long, thin crayfish feed?

Don't worry, they all pour smoothly!

4 types of screw feeder
designed to accommodate
different granules.

The screw feeders are
detachable and washable
to prevent fertilizer caking.

The motor operates at full
speed and effectively
crushes any caked fertilizer.

Key stress areas
strengthened to minimize
granule jamming risks.

XAG RealTerra 2

This is no ordinary camera.
Mapping fields and orchards with ease.

Mapping parameters
preconfigured, ready for takeoff
with a single click.
Capture 13 hectares⁶ in a single
flight, even without an internet
connection.
Conquer mountainous terrain
with automatic three-dimensional
flight path planning.

Our advanced mapping algorithm enhances digital map clarity, revealing
every field in detail and making plot planning effortless.

· Before

· After

Other alternative waypoint mapping methods besides XAG RealTerra 2

Manual Mapping

Remote Sensing Drone

Flight Remote Controller

XAG One App

Only a smartphone needed for
fully autonomous farmwork.

Intelligent Route Planning

Generate optimal routes based on the shape of plots. Return automatically
when battery or granule is low, and optimize routes with breakpoint
continuous flight.

Swarm Operation

Fully autonomous flight supports simultaneous control of two agricultural
drones, enabling more efficient collaboration.

Virtual High-Precision Positioning

In the absence of network or RTK, the system generates virtual high-precision
positioning based on drone location, with manual position correction to
maintain accuracy.

Compatible with Android & iOS

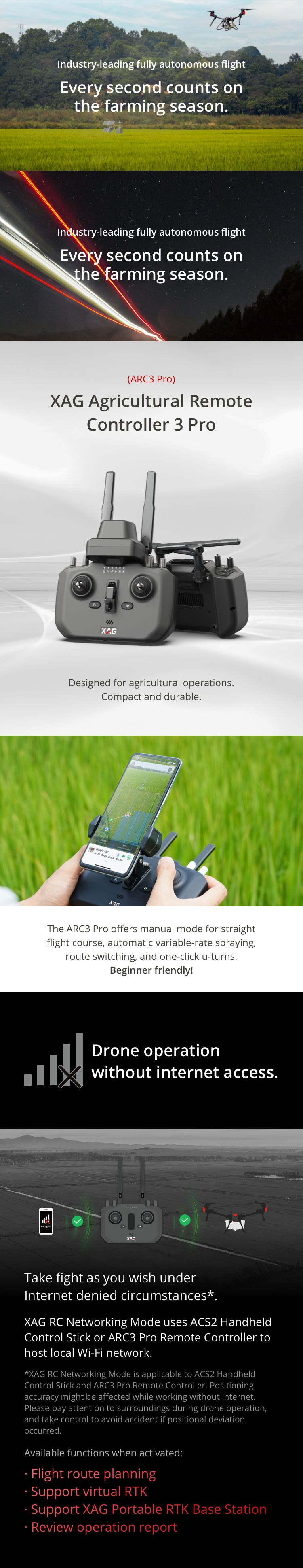

Industry-leading fully autonomous flight

Every second counts on the
farming season.

(ARC3 Pro)

XAG Agricultural Remote Controller 3 Pro

Designed for agricultural operations.
Compact and durable.

The ARC3 Pro offers manual mode for straight flight course, automatic
variable-rate spraying, route switching, and one-click u-turns.

Beginner friendly!

Drone operation
without internet access

Take fight as you wish under
Internet denied circumstances*.

XAG RC Networking Mode uses ACS2 Handheld Control Stick or ARC3
Pro Remote Controller to host local Wi-Fi network.

*XAG RC Networking Mode is applicable to ACS2 Handheld Control Stick and ARC3 Pro Remote Controller.
Positioning accuracy might be affected while working without internet. Please pay attention to surroundings
during drone operation, and take control to avoid accident if positional deviation occurred.

Available functions when activated:

· Flight route planning
· Support virtual RTK
· Support XAG Portable
RTK Base Station
· Review operation report

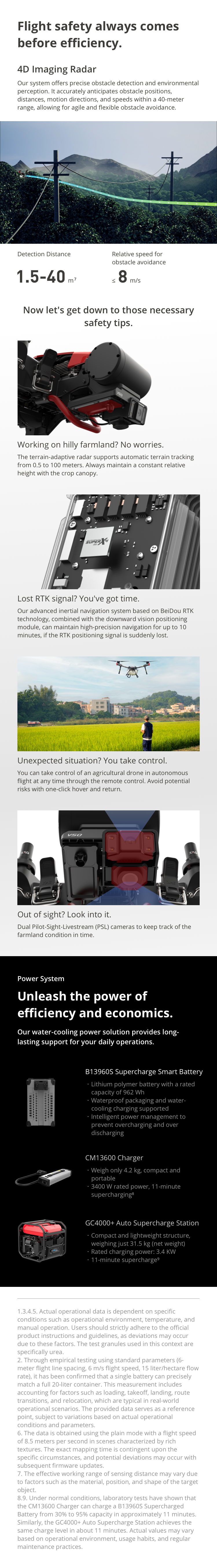

Flight safety always
comes before efficiency.

4D Imaging Radar

Our system offers precise obstacle detection and environmental
perception. It accurately anticipates obstacle positions,
distances, motion directions, and speeds within a 40-meter
range, allowing for agile and flexible obstacle avoidance.

Detection Distance

1.5-40

m⁷

Relative speed for obstacle avoidance

≤

m/s

Now let's get down to those necessary safety tips.

Working on hilly farmland? No worries.

The terrain-adaptive radar supports automatic terrain tracking from
0.5 to 100 meters. Always maintain a constant relative height with
the crop canopy.

Lost RTK signal? You've got time.

Our advanced inertial navigation system based on BeiDou RTK
technology, combined with the downward vision positioning module,
can maintain high-precision navigation for up to 10 minutes, if the
RTK positioning signal is suddenly lost.

Unexpected situation? You take control.

You can take control of an agricultural drone in autonomous flight at
any time through the remote control. Avoid potential risks with one-
click hover and return.

Out of sight? Look into it.

Dual Pilot-Sight-Livestream (PSL) cameras to keep track of the
farmland condition in time.

Power System

Unleash the power of
efficiency and economics.

Our water-cooling power
solution provides long-lasting
support for your daily operations.

B13960S Supercharge Smart Battery

｜

CM13600 Charger

｜

GC4000+ Auto Supercharge Station

・Lithium polymer battery with a rated capacity

of 962 Wh

・Waterproof packaging and water-cooling

charging supported

・Intelligent power management to prevent

overcharging and over discharging

・Weigh only 4.2 kg,

compact and portable

・3400 W rated power,

11-minute supercharging⁸

・Compact and lightweight structure, weighing

just 31.5 kg (net weight)

・Rated charging power: 3.4 KW

・11-minute supercharge⁹

1.3.4.5. Actual operational data is dependent on specific conditions such as operational environment, temperature, and manual operation. Users should strictly adhere to the official product instructions and guidelines, as deviations may occur due to these factors. The test granules used in this context are specifically urea.
2. Through empirical testing using standard parameters (6-meter flight line spacing, 6 m/s flight speed, 15 liter/hectare flow rate), it has been confirmed that a single battery can precisely match a full 20-liter container. This measurement includes accounting for factors such as loading, takeoff, landing, route transitions, and relocation, which are typical in real-world operational scenarios. The provided data serves as a reference point, subject to variations based on actual operational conditions and parameters.
6. The data is obtained using the plain mode with a flight speed of 8.5 meters per second in scenes characterized by rich textures. The exact mapping time is contingent upon the specific circumstances, and potential deviations may occur with subsequent firmware updates.
7. The effective working range of sensing distance may vary due to factors such as the material, position, and shape of the target object.
8.9. Under normal conditions, laboratory tests have shown that the CM13600 Charger can charge a B13960S Supercharged Battery from 30% to 95% capacity in approximately 11 minutes. Similarly, the GC4000+ Auto Supercharge Station achieves the same charge level in about 11 minutes. Actual values may vary based on operational environment, usage habits, and regular maintenance practices.
